This plug-in provides simple TCP port forwarding.
If the Simple DNS Plus computer is connected to both the Internet and to a private network (LAN), this can be used to forward connections from the Internet to a computer on the LAN. For example mapping remote desktop connections (port 3389).

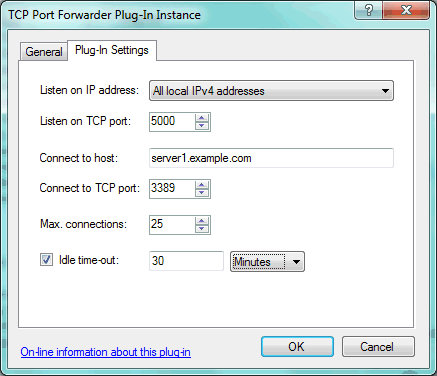

On the "Plug-In Settings" tab, enter the following settings (explained below the image):
- Listen on IP address
The local IP address that the plug-in should listen for incoming connections on.
- Listen on TCP port
The local TCP port number that the plug-in should listen for incoming connections on.
- Connect to host
The server host name or IP address that connections should be forwarded to.
- Connect to TCP port
The server TCP port that connections should be forwarded to.
- Max. connections
The maximum number of connections that can be forwarded at the same time.
- Idle time-out
If enabled, the connection will be closed if no data has been sent in either direction for this legth of time.

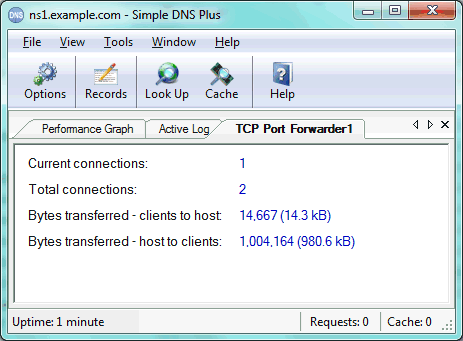

TheTCP Port Forwarder plug-in also has a "view" in the main Simple DNS Plus window (open from View menu), where you can see current and total number of connections, and the total bytes transferred:

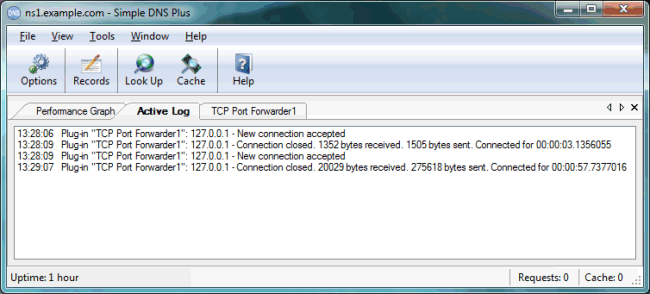

The Simple DNS Plus log (Active Log View and log files) will show when individual connections are accepted and closed:
Note that this plug-in does not provide any DNS records or any other functionality related to directly to DNS. But you can of course point domain names to the IP address that the plug-in listens for connections on, using A-records provided through local zones or other plug-ins.
How to obtain this plug-in
Download from https://github.com/jhsoftware/sdnspi-TcpForward/releases, un-zip it to the Simple DNS Plus plug-in directory (typically "C:\Program Files\Simple DNS Plus\PlugIns"), unblock it (IMPORTANT), and then restart Simple DNS Plus.
This source code for this plug-in is available at https://github.com/jhsoftware/sdnspi-TcpForward
Contributions are most welcome.
